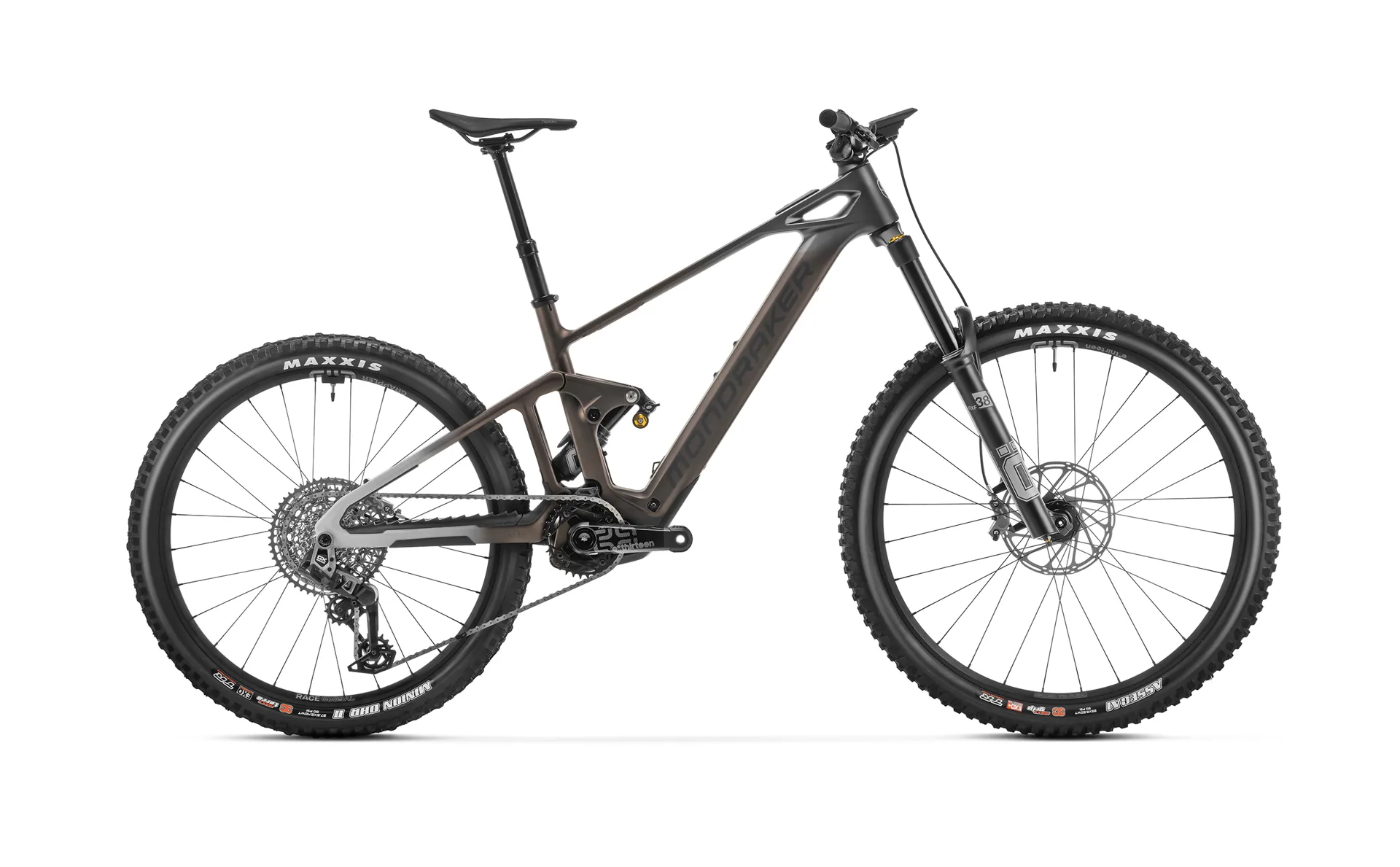

2024 Mondraker Dune RR Carbon Electric Full Suspension Mountain Bike in Bronze

Mondraker

2024 Mondraker Dune RR Carbon Electric Full Suspension Mountain Bike in Bronze

£6,499.00 £8,499.00 24% off

Size Guide

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

ONLINE RETURNS POLICY
(For items purchased online only)

Our policy lasts 14 days. If 14 days have gone by since your purchase, unfortunately, we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

In December items may take longer to arrive due to delays with royal mail at this time of year. All orders are processed the next working day and sent 1st class or parcel force 48.

Several types of goods are exempt from being returned. Perishable goods such as food, flowers, newspapers or magazines cannot be returned. We also do not accept products that are intimate or sanitary goods, hazardous materials, or flammable liquids or gases.

Additional non-returnable items:
Gift cards
Downloadable software products
Some health and personal care items
Helmets

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted: (if applicable)

Book with obvious signs of use
Any item not in its original condition is damaged or missing parts for reasons not due to our error.
Any item that is returned more than 14 days after delivery
Refunds (if applicable)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next, contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at sales@monsterbikeshop.com.

Exchanges (if applicable)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at sales@monsterbikeshop.com and send your item to Unit 9, Canal Road, Inverness, IV3 8NF, United Kingdom.

Shipping

To return your product, you should mail your product to Unit 9, Canal Road, Inverness, IV3 8NF, United Kingdom.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you may vary.

IN STORE RETURNS

All items purchased in store which are not faulty are only eligable for a store credit or exchange at the shops discression.
All items must be in new and unused condition and have proof of purchase to be considered.

2024 Mondraker Dune RR Carbon Electric Full Suspension Mountain Bike in Bronze

Season:2024

Brand:Mondraker

Code:010.242

DUNE is the latest expression within the Light e-MTB range.A model that inherits the best capabilities such as the lightness and handling of NEAT, and the power and performance of long-travel models such as SUPERFOXY and LEVEL. DUNE rebels as a hybrid between both ranges with an integrated 400Wh battery, whichmake it our superenduro of light ebikes,weighing less than 20kg and solves the doubts of those looking for a model between the latest generation enduro and 'full power' type ebikes.

Technical Information

Stealth Air full Carbon, Zero Suspension System optimized for e-bike, Mullet, 165mm travel, Forward Geometry, removable internal battery, 12x148mm Boost rear axle, profiled head tube, one-piece Monobloc upper link, HHG internal cable routing system, MAX sealed bearings, 15mm oversized axles, exclusive plastic engine covers.
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Shock absorber
Öhlins TTX Air 205X65mm. Settings: high-speed compression lever with "climb" mode (semi-locked), low-speed compression, rebound, air preload. Trunnion upper anchor, 30x8mm lower bushings.
Shock Adjustment
C20 compression, R35 rebound. Volume reducers 12,000 (2xF+1D)
Fork
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered head tube, 15x110mm Boost axle, 44mm offset. Settings: high-speed compression lever with "climb" mode (semi-locked), low-speed compression, rebound, air preload, ramp chamber.
Address
Custom acros for 1-1/2" head tube, angular contact bearings 40x52x7, internal wiring system
Power
Onoff Krypton FG 30mm, CNC, 31.8mm diameter
Handlebar
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, rear sweep: 9º, upsweep: 5º, diameter 31.8mm
Fists
Onoff Desert, 1 lock-on, 135mm
Seatpost
Onoff Internal wiring pin, 31.6mm diameter, 1 remote control with bearing, size S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 558x170-200mm
Saddle
Fizik Terra Aidon Slim X5
Front brake
Sram Code Bronze Stealth, oversized 4-piston caliper, 200mm Centerline one-piece IS 6-bolt disc, sintered sheet steel pads.
Rear brake
Sram Code Bronze Stealth, oversized 4-piston caliper, 200mm Centerline one-piece IS 6-bolt disc, sintered sheet steel pads.
Brake levers
Sram Code Bronze Stealth, SwingLink and Lever Shaft with Bushings, Tool-Free Reach Adjustment
Tires
e*thirteen Grappler Race, hookless, welded aluminum 6069, internal width 30mm, tubeless ready, 28 spokes, front wheel: 29" , rear wheel: 27.5"
Radios
e*thirteen, custom J-shaped, steel knitted, alloy nipples, with nipple washers
Front hub
15x110mm e*thirteen Boost, triple-sealed, 100% machined aluminum, 6-bolt IS
Rear hub
12x148mm e*thirteen Boost, triple-sealed, 100% machined aluminum, with a 6º return angle, 6-bolt IS, XD freehub
Front Tire
Maxxis Assegai 29x2.5WT; tubeless ready, 3C MAXX GRIP compound, DH shell, 60x2TPI, with folding rim
Rear tire
Maxxis Minion DHR II 27'5x2.4 WT; tubeless ready, 3C MaxxTerra compound, DD shell, 2x120TPI, folding rim
Connecting rods
E.13 E*Spec Plus, size S: 165mm M: 165mm L: 170mm XL: 170mm
Dishes
Sram X-Sync 2 Eagle, 34 teeth, T-type, steel, narrow and wide design, 104 BCD CL55
Chain
Sram GX Eagle T-Type, 12v, Powerlock
Rear derailleur
Sram GX Eagle AXS, clutch with T-type roller bearings, box lock, 1x12v
Controls - shift buttons
Sram Eagle AXS Pod MMX, 12v
Pine nuts
Sram XS-1275 10-52 teeth, T-type, 12v
Weight without pedals
19.6 kg
Display
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Engine
Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM in down tube, large capacity
Battery
Bosch Compact Powertube 400Wh

Sizing Information

Stealth Air full Carbon, Zero Suspension System optimized for e-bike, Mullet, 165mm travel, Forward Geometry, removable internal battery, 12x148mm Boost rear axle, profiled head tube, one-piece Monobloc upper link, HHG internal cable routing system, MAX sealed bearings, 15mm oversized axles, exclusive plastic engine covers.
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Shock absorber
Öhlins TTX Air 205X65mm. Settings: high-speed compression lever with "climb" mode (semi-locked), low-speed compression, rebound, air preload. Trunnion upper anchor, 30x8mm lower bushings.
Shock Adjustment
C20 compression, R35 rebound. Volume reducers 12,000 (2xF+1D)
Fork
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered head tube, 15x110mm Boost axle, 44mm offset. Settings: high-speed compression lever with "climb" mode (semi-locked), low-speed compression, rebound, air preload, ramp chamber.
Address
Custom acros for 1-1/2" head tube, angular contact bearings 40x52x7, internal wiring system
Power
Onoff Krypton FG 30mm, CNC, 31.8mm diameter
Handlebar
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, rear sweep: 9º, upsweep: 5º, diameter 31.8mm
Fists
Onoff Desert, 1 lock-on, 135mm
Seatpost
Onoff Internal wiring pin, 31.6mm diameter, 1 remote control with bearing, size S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 558x170-200mm
Saddle
Fizik Terra Aidon Slim X5
Front brake
Sram Code Bronze Stealth, oversized 4-piston caliper, 200mm Centerline one-piece IS 6-bolt disc, sintered sheet steel pads.
Rear brake
Sram Code Bronze Stealth, oversized 4-piston caliper, 200mm Centerline one-piece IS 6-bolt disc, sintered sheet steel pads.
Brake levers
Sram Code Bronze Stealth, SwingLink and Lever Shaft with Bushings, Tool-Free Reach Adjustment
Tires
e*thirteen Grappler Race, hookless, welded aluminum 6069, internal width 30mm, tubeless ready, 28 spokes, front wheel: 29" , rear wheel: 27.5"
Radios
e*thirteen, custom J-shaped, steel knitted, alloy nipples, with nipple washers
Front hub
15x110mm e*thirteen Boost, triple-sealed, 100% machined aluminum, 6-bolt IS
Rear hub
12x148mm e*thirteen Boost, triple-sealed, 100% machined aluminum, with a 6º return angle, 6-bolt IS, XD freehub
Front Tire
Maxxis Assegai 29x2.5WT; tubeless ready, 3C MAXX GRIP compound, DH shell, 60x2TPI, with folding rim
Rear tire
Maxxis Minion DHR II 27'5x2.4 WT; tubeless ready, 3C MaxxTerra compound, DD shell, 2x120TPI, folding rim
Connecting rods
E.13 E*Spec Plus, size S: 165mm M: 165mm L: 170mm XL: 170mm
Dishes
Sram X-Sync 2 Eagle, 34 teeth, T-type, steel, narrow and wide design, 104 BCD CL55
Chain
Sram GX Eagle T-Type, 12v, Powerlock
Rear derailleur
Sram GX Eagle AXS, clutch with T-type roller bearings, box lock, 1x12v
Controls - shift buttons
Sram Eagle AXS Pod MMX, 12v
Pine nuts
Sram XS-1275 10-52 teeth, T-type, 12v
Weight without pedals
19.6 kg
Display
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Engine
Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM in down tube, large capacity
Battery
Bosch Compact Powertube 400Wh
