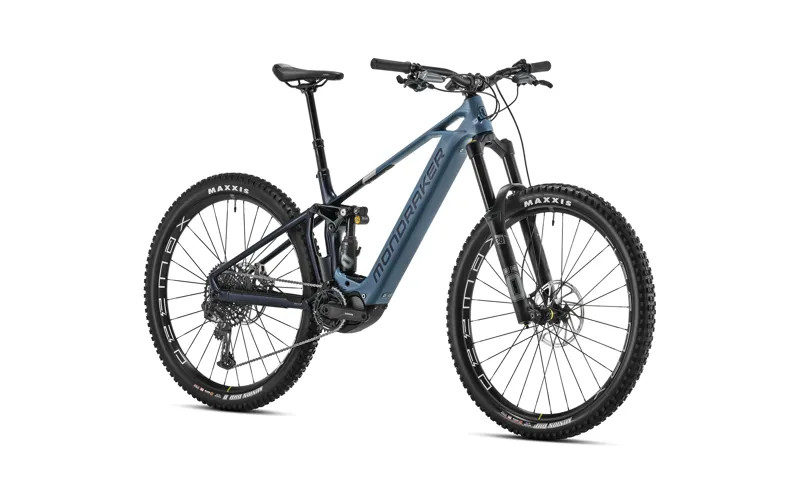

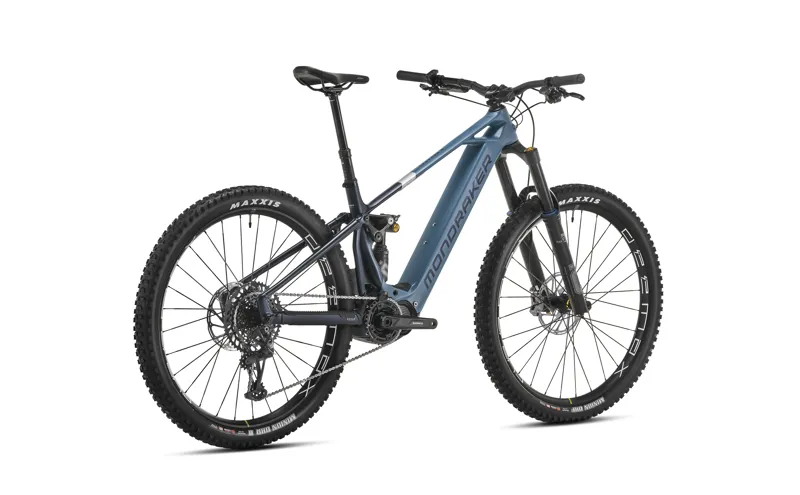

2024 Mondraker Crusher R Full Suspension electric Mountain Bike in Denim Blue

Season:2024

Brand:Mondraker

Code:010.2436

You are one of us. Of those who are willing to do anything. Especially everything that includes adrenaline, effort and decision. That's why we're sure you're going to love the CRUSHER. Your type of enduro ebike, spectacular, reliable and capable of everything. Introducing CRUSHER.
Technical Information
  • picture


    Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, Zero Suspension System optimized for e-bike, 150mm travel, Forward Geometry, non-removable internal battery, 12x148mm Boost rear axle, profiled head tube, one-piece Monobloc upper link, HHG internal routing system, sealed MAX bearings, 17mm oversized axles, speed sensor integrated in the dropout, Exclusive plastic engine covers.

    Sizes

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

  • shock absorber

    Shock absorber

    Öhlins TTX Air 205X65mm. Settings: high-speed compression lever with "climb" mode (semi-locked), low-speed compression, rebound, air preload. Trunnion upper anchor, 25x10mm lower bushings.

    Shock Absorber Adjustment

    Shock Adjustment

    C20 compression, R35 rebound. Volume reducers 12,000 (2xF+1D)

  • fork

    Fork

    Öhlins RXF 38 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered head tube, 15x110mm Boost axle, 44mm offset. Settings: high-speed compression lever with "climb" mode (semi-locked), low-speed compression, rebound, air preload, ramp chamber.

    address

    Address

    Acros AZF-601 R1 Block Lock 120°, ZS44/28.6 top, ZS56/40 bottom

  • power

    Power

    ONOFF Krypton FG 30mm, CNC, 31.8mm diameter

    handlebar

    Handlebar

    ONOFF Krypton 1.0, rise: 25mm, width: 800mm, rear sweep: 9º, upsweep: 5º, diameter 31.8mm

  • Fists

    Fists

    ONOFF Desert, 1 lock-on, 135mm

    Stem

    Seatpost

    ONOFF Internal wiring pin, diameter of 31.6mm, 1 remote control with bearing, size S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 558x170-200mm

  • Saddle

    Saddle

    FIZIK Terra Aidon X5 145mm

    Front brake

    Front brake

    SRAM Code Bronze Stealth, oversized 4-piston caliper, 200mm Centerline one-piece IS 6-bolt disc, sintered sheet steel pads.

  • Rear brake

    Rear brake

    SRAM Code Bronze Stealth, oversized 4-piston caliper, 200mm Centerline one-piece IS 6-bolt disc, sintered sheet steel pads.

    Brake levers

    Brake levers

    SRAM Code Bronze Stealth, SwingLink and lever axle with bushings, tool-free reach adjustment

  • Tires

    Tires

    Mavic E-Deemax 29, 30mm internal width, welded rim, PFP, tubeless ready, 28 spokes

    Radios

    Radios

    Mavic, angled biconical spokes, non-contact radiation between spokes

  • Front hub

    Front hub

    Mavic, 15x110mm Boost, 6-bolt IS

    Rear hub

    Rear hub

    Mavic, 12x148mm Boost, ID360 Ratchet system, 6-bolt IS, XD freehub

  • Front Tire

    Front Tire

    Maxxis Minion DHF 29x2.6; tubeless ready, 3C MAXX TERRA, EXO+ shell, 120TPI, folding rim

    Rear tire

    Rear tire

    Maxxis Minion DHR II 29x2.6; tubeless ready, 3C MAXX TERRA, EXO+ shell, 120TPI, folding rim

  • Connecting rods

    Connecting rods

    Shimano Steps FC-EM600 ebike, 165mm

    Dishes

    Dishes

    SRAM X-Sync 2 Eagle, 34 teeth, alloy, narrow and wide design, 104 BCD

  • chain

    Chain

    SRAM NX Eagle, 12v, Powerlock

    Rear Derailleur

    Rear derailleur

    SRAM X01 Eagle, clutch with type 3 roller bearings, case lock, 1x12v, X-Actuation 1:1

  • Controls - Shift buttons

    Controls - shift buttons

    SRAM Trigger GX Eagle, 12v, X-Actuation 1:1, one-click speed change

    Pine nuts

    Pine nuts

    SRAM XG-1275 10-52 teeth, 12v

  • Derailleur hanger

    Derailleur hanger

    Mondraker M068

    Weight without pedals

    Weight without pedals

    24.1 kg

  • display

    Display

    Shimano EN600

    engine

    Engine

    Shimano STEPS EP801

  • Battery

    Battery

    Simplo internal 720Wh G3
