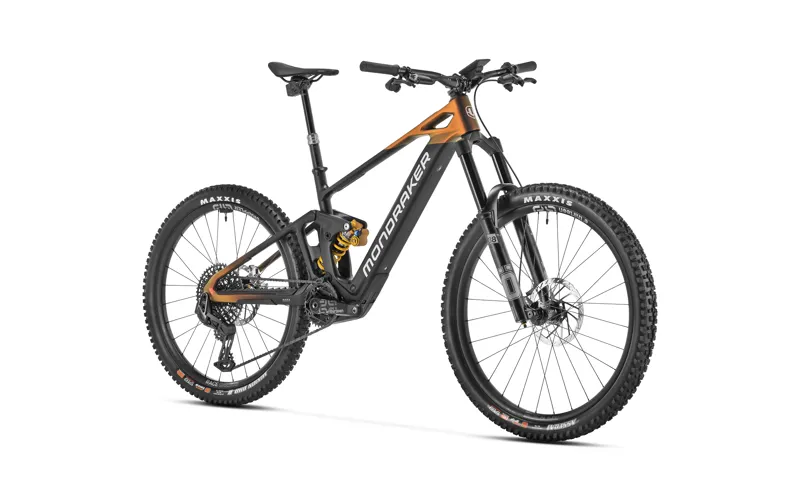

Mondraker Dune XR Carbon Full Suspension Electric Mountain Bike In Mars

Season:2024

Brand:Mondraker

Code:010.2426

The basis of DUNE is aStealth Air Carbon frame weighing 2,650 grams,in perfect combination with the power and lightness of the latest launch of the leading brand Bosch,with its Performance SX engine.A frame that highlights its Updated Zero Suspension System with 165mm of travel, and Forward Geometry focused on maximum performance for this Light e-MTB long-travel model.
Technical Information
  • picture


    Stealth Air full Carbon, Zero Suspension System optimized for e-bike, Mullet, 165mm travel, Forward Geometry, removable internal battery, 12x148mm Boost rear axle, profiled head tube, one-piece Monobloc upper link, HHG internal cable routing system, MAX sealed bearings, 15mm oversized axles, exclusive plastic engine covers.

    Sizes

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

  • shock absorber

    Shock absorber

    Öhlins TTX22M.2 205x65mm. Adjustments: high-speed compression lever with "climb" mode (semi-locked), low-speed compression, rebound, spring preload. Trunnion upper anchor, 30x8mm lower bushings.

    Shock Absorber Adjustment

    Shock Adjustment

    C10 compression, R35 rebound. Spring hardness: (depending on bike size) S=334 lbs, M=411 lbs, L=457 lbs, XL=502 lbs

  • fork

    Fork

    Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered head tube, 15x110mm Boost axle, 44mm offset. Settings: high-speed compression lever with "climb" mode (semi-locked), low-speed compression, rebound, air preload, ramp chamber.

    address

    Address

    Custom acros for 1-1/2" head tube, angular contact bearings 40x52x7, internal wiring system

  • power

    Power

    Onoff Krypton FG 30mm, CNC, 31.8mm diameter

    handlebar

    Handlebar

    Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, rear sweep: 9º, upsweep: 5º, diameter 31.8mm

  • Fists

    Fists

    Onoff Desert, 1 lock-on, 135mm

    Stem

    Seatpost

    RockShox Stealth AXS Reverb, 31.6mm diameter, size S: 340x125mm M: 390x150mm L: 440x170mm XL: 440x170mm

  • Saddle

    Saddle

    Fizik Terra Aidon Slim X5

    Front brake

    Front brake

    Sram Code Ultimate Stealth, oversized 4-piston caliper, 200mm HS2 one-piece IS 6-bolt disc, sintered sheet steel pads.

  • Rear brake

    Rear brake

    Sram Code Ultimate Stealth, oversized 4-piston caliper, 200mm HS2 one-piece IS 6-bolt disc, sintered sheet steel pads.

    Brake levers

    Brake levers

    Sram Code Ultimate Stealth, SwingLink and Lever Axle with Bearings, Bite Point Control and Tool-Free Reach Adjustment

  • Tires

    Tires

    e*thirteen Grappler Carbon, hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes, front wheel: 29" , rear wheel: 27.5"

    Radios

    Radios

    e*thirteen Hive customized, black, steel knitted, alloy nipples, with nipple washers

  • Front hub

    Front hub

    15x110mm e*thirteen Boost, triple-sealed, 100% machined aluminum, 6-bolt IS

    Rear hub

    Rear hub

    12x148mm e*thirteen Boost, triple-sealed, 100% machined aluminum, with a 6º return angle, 6-bolt IS, XD freehub

  • Front Tire

    Front Tire

    Maxxis Assegai 29x2.5WT; tubeless ready, 3C MAXX GRIP compound, DH shell, 60x2TPI, with folding rim

    Rear tire

    Rear tire

    Maxxis Minion DHR II 27'5x2.4 WT; tubeless ready, 3C MaxxTerra compound, DD shell, 2x120TPI, folding rim

  • Connecting rods

    Connecting rods

    E.13 TRS Race carbon ebike, size S: 165mm M: 165mm L: 170mm XL: 170mm

    Dishes

    Dishes

    Sram X-Sync 2 Eagle, 34 teeth, T-type, steel, narrow and wide design, 104 BCD CL55

  • chain

    Chain

    Sram X0 Eagle T-Type, 12v, Powerlock

    Rear Derailleur

    Rear derailleur

    Sram X0 Eagle AXS, clutch with T-type roller bearings, box lock, long carbon case, 1x12v

  • Controls - Shift buttons

    Controls - shift buttons

    Sram Eagle AXS Pod MMX, 12v

    Pine nuts

    Pine nuts

    Sram XG-1295 10-52 teeth, T-type, 12v

  • Weight without pedals

    Weight without pedals

    19.7 kg

    display

    Display

    Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller

  • engine

    Engine

    Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM in down tube, large capacity

    Battery

    Battery

    Bosch Compact Powertube 400Wh
