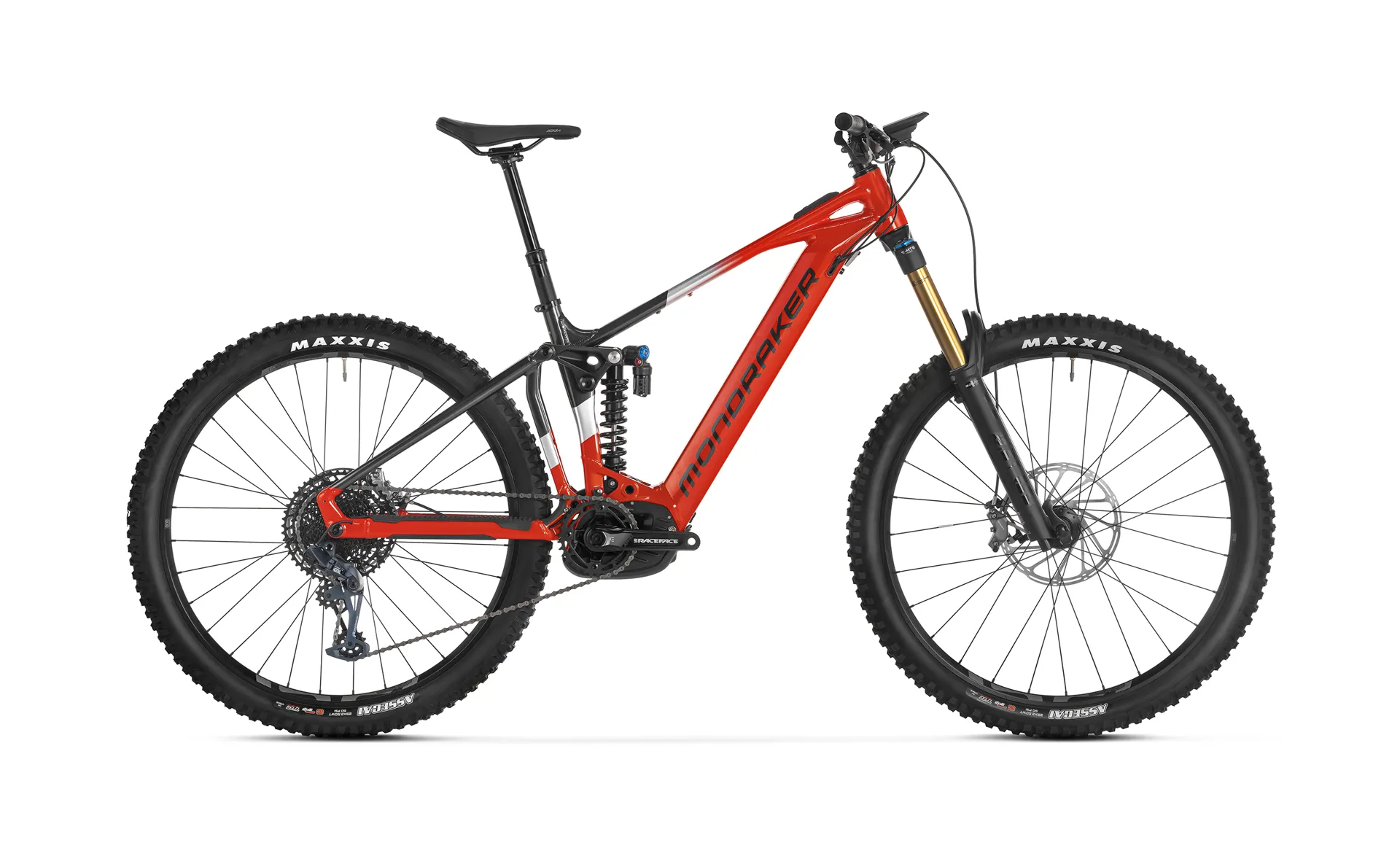

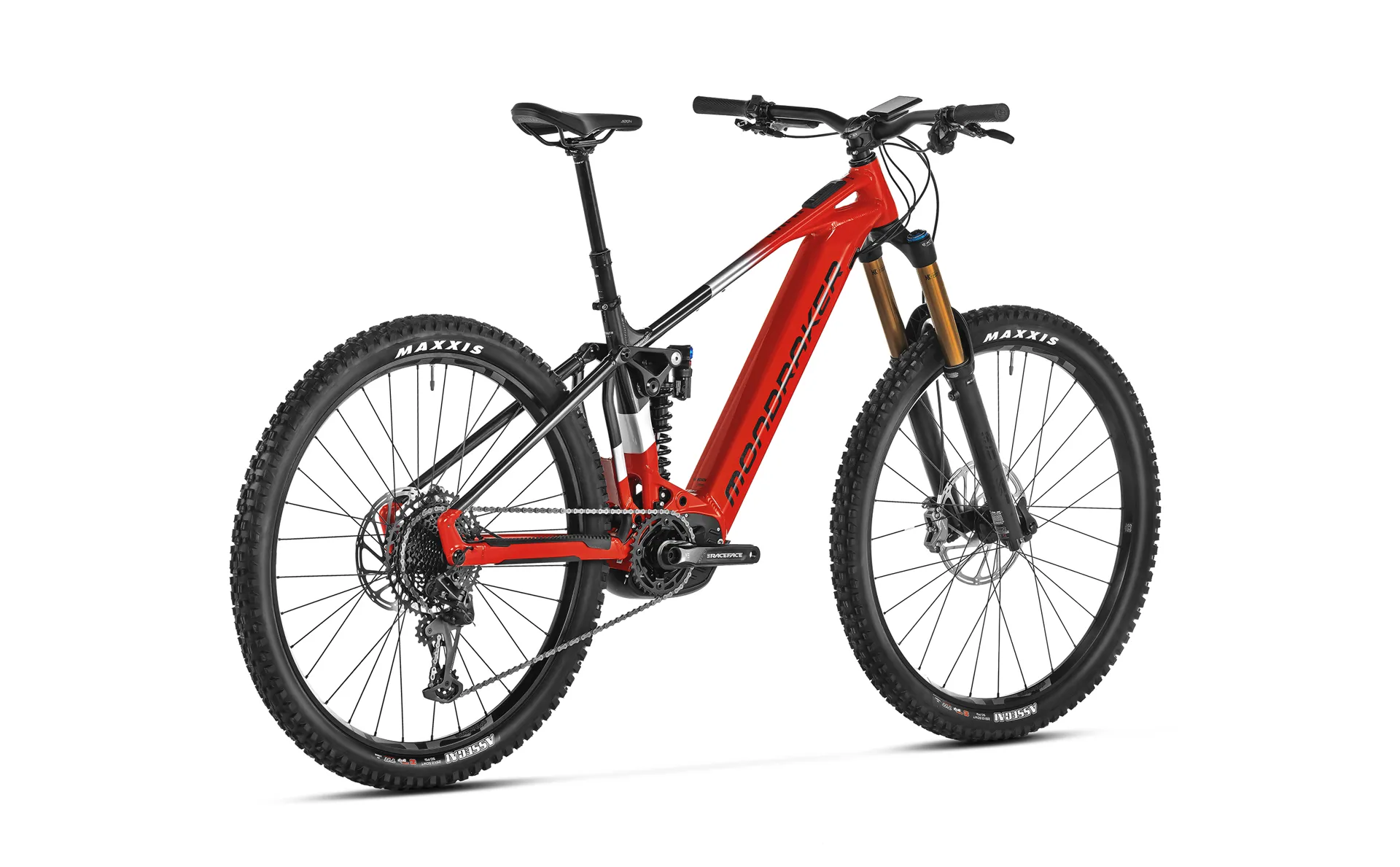

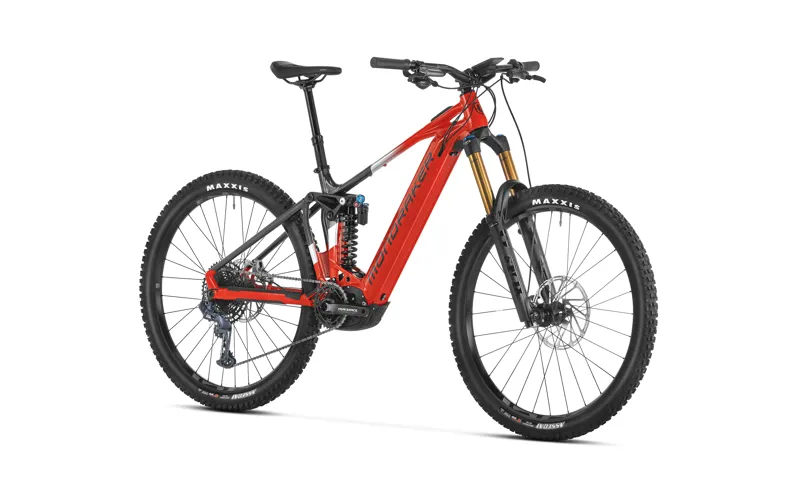

Demo Bike - 2024 Mondraker Level RR Alloy Full Suspension Electric Mountain Bike in Flame Red

Season:2024

Brand:Mondraker

Code:010.2446

If you are one of those who like to go down more than uphill, but you want a more versatile ebike than a DH bike, the LEVEL will fit you like a glove. They are our most beastly ebikes. The natural place for the LEVEL are the trails with rocks, roots, stones... and bike parks. It is here that we will get the most out of its 180 mm of travel front and 170 mm rear. The 3 models in the range are equipped with the Bosch Performance Line CX GEN4 BS3 motor with the new Mini Remote and System Controller. Thanks to this and its 750 Wh batteries, you can climb to the top as many times as you want to enjoy the most extreme descents you can imagine. The LEVEL makes it easy for you both uphill and downhill.
Technical Information
  • picture


    Level 6061 Alloy Stealth Evo, e-bike-optimized Zero Suspension System, 170mm travel, Forward Geometry, non-removable internal battery, 12x148mm Boost rear axle, tapered head tube, one-piece Monobloc upper linkage, HHG internal cable routing system, MAX sealed bearings, 17mm oversized axles, integrated toe speed sensor, exclusive plastic motor caps.

    Sizes

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

  • shock absorber

    Shock absorber

    Fox DHX2 Performance Elite, 225x75mm. Adjustments: Low-speed compression, low-speed rebound, spring preload. Trunnion upper anchor, 25x10mm lower bushings.

    Shock Absorber Adjustment

    Shock Adjustment

    Medium compression, medium rebound. Spring hardness: (depending on bike size) S=300 lbs, M=300lbs, L=350 lbs, XL=400 lbs

  • fork

    Fork

    Fox 38 29 Float FIt GRIP2 Factory Kashima, 180mm, optimized for e-bike, tapered head tube, 15x110mm Boost axle, 44mm offset. Adjustments: high and low speed compression, high and low speed rebound, air preload.

    address

    Address

    ONOFF Saturn profiled for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

  • power

    Power

    ONOFF Krypton FG 30mm, CNC, 31.8mm diameter

    handlebar

    Handlebar

    ONOFF Sulfur 1.0 bi-butted in 6061 alloy, rise: 20mm, width: 800mm, rear sweep: 9º, upsweep: 5º, diameter 31.8mm

  • Fists

    Fists

    ONOFF Desert, 1 lock-on, 135mm

    Stem

    Seatpost

    ONOFF Internal wiring pin, diameter of 31.6mm, 1 remote control with bearing, size S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 558x170-200mm

  • Saddle

    Saddle

    FIZIK Terra Aidon X5 145mm

    Front brake

    Front brake

    SRAM Code Bronze Stealth, oversized 4-piston caliper, 220mm Centerline one-piece IS 6-bolt disc, sintered sheet steel pads.

  • Rear brake

    Rear brake

    SRAM Code Bronze Stealth, oversized 4-piston caliper, 200mm Centerline one-piece IS 6-bolt disc, sintered sheet steel pads.

    Brake levers

    Brake levers

    SRAM Code Bronze Stealth, SwingLink and lever axle with bushings, tool-free reach adjustment

  • Tires

    Tires

    e*thirteen E*Spec, IW30 Hookless, 6069 welded aluminium, 30mm internal width, tubeless ready, 28 spokes on the front wheel / 32 spokes on the rear wheel

    Radios

    Radios

    e*thirteen, custom J-shaped, steel knitted, alloy nipples, with nipple washers

  • Front hub

    Front hub

    15x110mm e*thirteen Boost, triple-sealed, 100% machined aluminum, 6-bolt IS

    Rear hub

    Rear hub

    12x148mm e*thirteen Boost, triple-sealed, 100% machined aluminum, with a 6º return angle, 6-bolt IS, HG freehub

  • Front Tire

    Front Tire

    Maxxis Assegai 29x2.5WT; tubeless ready, 3C MAXX GRIP compound, DH shell, 60x2TPI, with folding rim

    Rear tire

    Rear tire

    Maxxis Assegai 29x2.5WT; tubeless ready, 3C MAXX GRIP compound, DH shell, 60x2TPI, with folding rim

  • Connecting rods

    Connecting rods

    Race Face Aeffect ebike, 165mm

    Dishes

    Dishes

    SRAM X-Sync 2 Eagle, 34 teeth, steel, narrow and wide design, 104 BCD

  • chain

    Chain

    SRAM SX Eagle, 12v, Powerlock

    Rear Derailleur

    Rear derailleur

    SRAM GX Eagle, clutch with type 3 roller bearings, box lock, 1x12v, X-Actuation 1:1

  • Controls - Shift buttons

    Controls - shift buttons

    SRAM Trigger NX Eagle, 12v, X-Actuation 1:1, one-click speed change

    Pine nuts

    Pine nuts

    SRAM PG-1210 11-50 teeth, 12v

  • Derailleur hanger

    Derailleur hanger

    Mondraker M068

    Weight without pedals

    Weight without pedals

    26.9 kg

  • display

    Display

    Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller

    engine

    Engine

    Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM

  • Battery

    Battery

    Bosch Powertube 750Wh
